Lancaster & Atlantic Rail Road
Carrying on the tradition of the Pennsylvania Railroad in Lancaster County, Pennsylvania.
A complete redesign of the layout in October of 2009

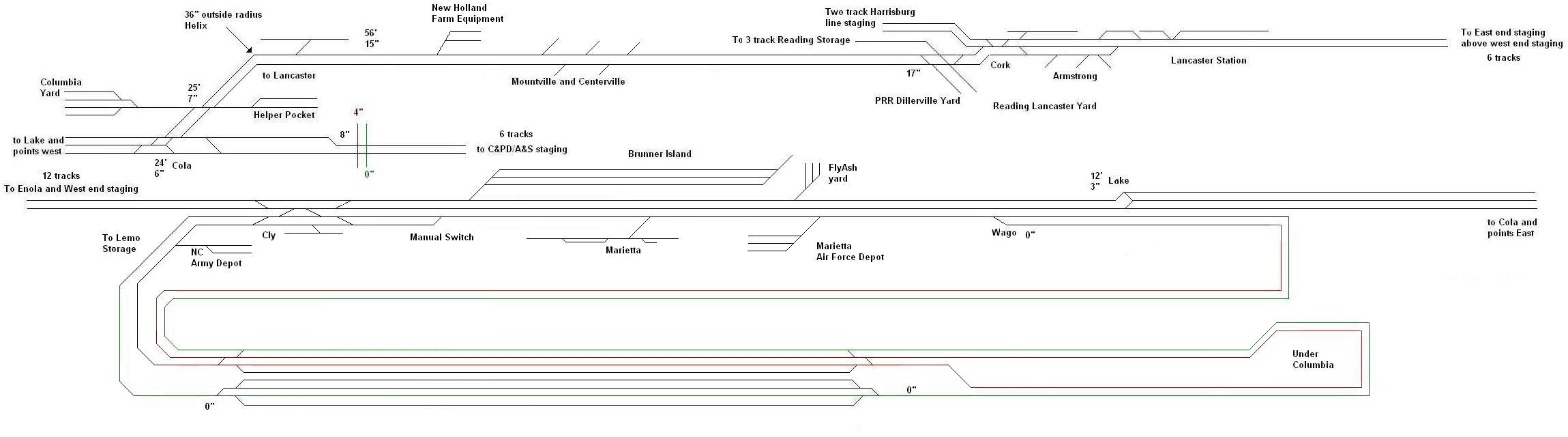

click on the layout to see the big picture.
click your back button to return to this page
above is version f of the current plan - changes include addition of double crossovers into Wago and Lemo and out of Wago.
construction is currently at Lake Interlocking
Next up will be Lemo Catenary.
The Cly interlocking as a manual (Armstrong) Interlocking
As the PRR built it
The Cly interlocking as part of my CTC system
the under construction cly
the electrical underside
the gallery below has the reworked Enola yard.
Thanks to Jeff, Jim and Steven for all their help suggestions.
The layout is designed for two levels, with Enola as the major class yard and Dillerville yard serving the local Lancaster industry.
Design goals and other stuff
Motive power will follow typical PRR practice.
36" minimum mainline (32" on some between level track work)
Catenary operation
Working signals
